Description

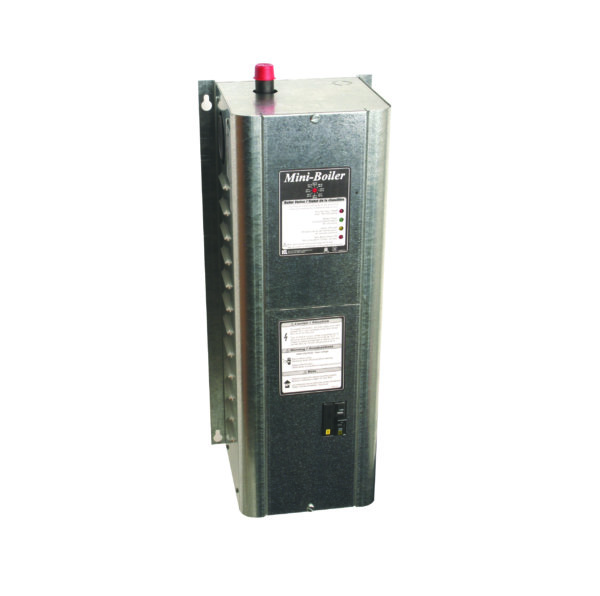

Our new Mini-Boiler has more features and is easier to install and use than ever before. One of the best features of this new unit is it comes to you at a lower price tag, all while maintaining our high quality and reliability that you have come to expect from Electro Industries.
The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a boiler that is easier to use and install, which in turn saves you money.
Features include:
- Built-in temperature pressure gauge
- Built-in temperature sensor
- Square D circuit breaker (built-in disconnect circuit breaker)
- Temperature dial on front cover
- Indicator lights
- Easy access control board
- Compact design, 10-½”W x 8-⅝”D x 25”H
- 100% efficient
Standard equipment:
- Control wiring terminals
- DC power relays
- Hi-limits: 1st – automatic reset, 2nd – manual reset
- Circulator switching relay – 10-amp maximum
- Thermostat or end switch connection (R and W)
- Load management control provisions
- Heavy duty sheet metal enclosure
- 1 gal. steel vessel, ASME “H” Stamp (20-year warranty)
- Safety relief valve (30 PSI)
- Low watt density heating elements (20-year warranty)
- 2-year parts warranty
- Temperature range 90° F to 160° F
- ASME/CSA listings
- Made in the USA
Typical radiant applications include:
- Apartments
- Condo’s
- Garages
- Shops
- Animal Barns
- Whole house by using one boiler per level
- Even Bus Shelters….
More Information:
